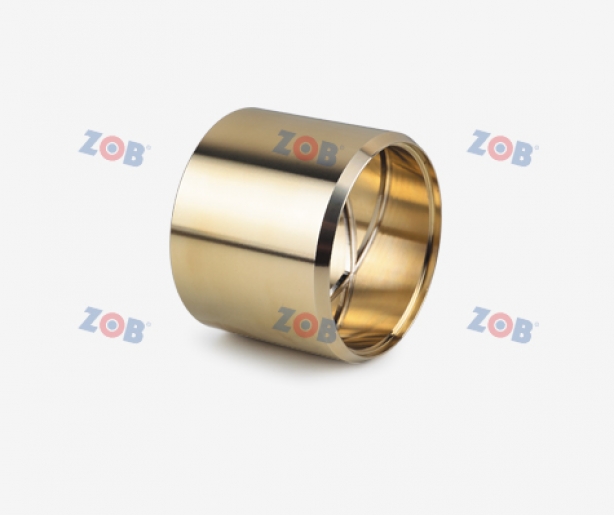

JDB-1U JDB-1U copper alloy bearing with oil groove

1.High-strength brass bearing lubricating by oil in oil groove
2.It inherits the traditional functions of tin bronze bearings. Due to the use of high-strength brass, its hardness doubled
3.life of the product doubled compared with the general bronze bushings under low-speed conditions,
4.High load capacity, suits for heavy load application.

Application
1.Stressed joints of excavators
2.Large gearboxes.

Contact Us >
Technical Parameter

Base material: CuZn25A16Fe3Mn3

Ultimate dynamic load: 100N/mm²

Base hardness: HB210-270

Friction Coef. μ: 0.04-0.16

Max operating temperature: 170

Max sliding speed: 1.5m/s
