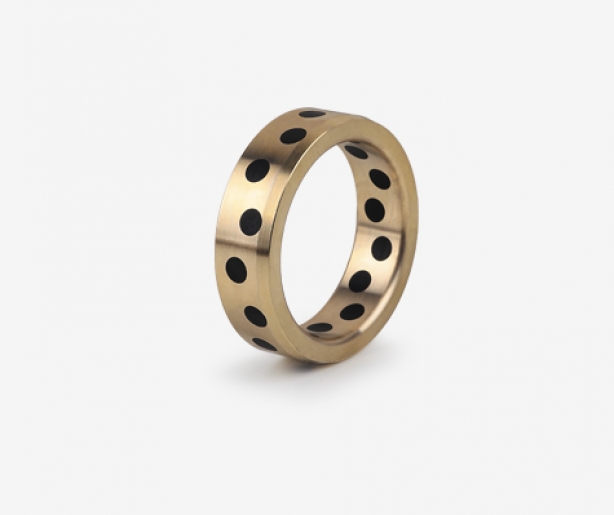

JDB-1M JDB-1M high-hardness brass solid-lubricant embedded bearing

Feature
1.Improves the hardness of brass base on the basis of JDB-1 bearing, further improve the bearing capacity and wear resistance of the product.
2.Due to the high hardness and difficulty in processing, it is not recommended to use if the load is not particularly high.


Application:
1.Continuous casting mill
2.Mining machinery
3.Engineering machinery
4.Injection molding machinery

Contact Us >
Technical Parameter

Base material: CuZn25AI6Fe3Mn3

Ultimate dynamic load: 120N/mm²

Base hardness: HB245-275

Friction Coef. μ: 0.04-0.16

Max operating temperature: 300

Max sliding speed: 0.4m/s (dry) 5m/s (oil)
