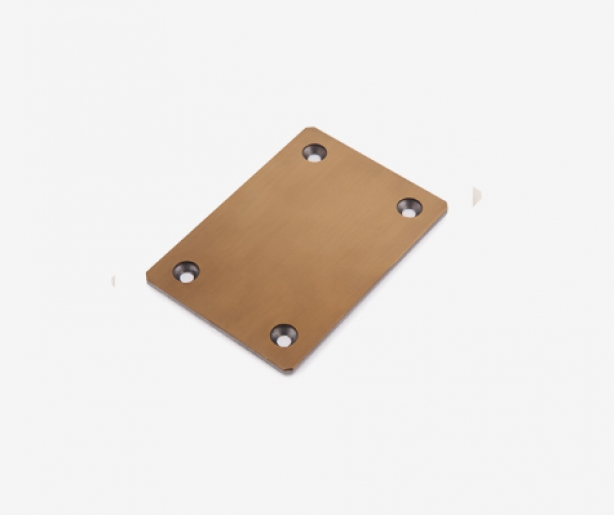

TF-1 TF-1 loose graphite embedded alloy bearing

Features
1.Improved type based on the JF800 bimetal bushing, and inherits the pressure resistance and wear resistance of JF800
2.With loose embedded graphite, oilless lubrication can be met
3.Low friction coef. under the condition of no oil or less oil lubrication, shaft seizing can be avoided.
4.Suits for working conditions of high-temperature and high-speed occasions where long-term refueling is not possible.

Application:
1.Guide part of rubber tire mold
2.Sliding part of lifting equipment
3.High-speed sliding part of hydraulic turbine

Contact Us >
Technical Parameter



Copper alloy material: CuSnPb+C

Max operating temperature: 300

Max load pressure: 150N/mm²

 Friction Coef. μ: 0.05-0.18
