Structure

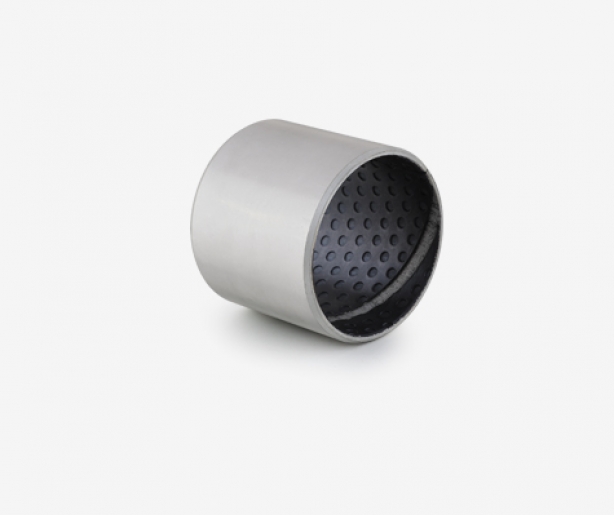

Steel plate-- copper powder layer-- modified PEEK material
Feature
1.Modified PEEK is a polymer, temperature-resistant, wear-resistant, and corrosion-resistant material
2.Especially suitable for water lubrication and less oil lubrication occasions
3.Significant longer service life with 0.1mm PEEK thickness
Application
1.high-quality shock absorber guiding parts
2.Tanks
3.Rocket lifting parts
Machine tool sliding guides
Max load pressure: 100N/mm²
Friction Coef. μ: 0.05-0.20
Applicable temperature : -190℃-300℃
Max allowable PV value (dry): 3.0N/mm²·m/s
Max sliding speed: 2.5m/s
Max allowable PV value (oil): 40N/mm²·m/s
