Structure

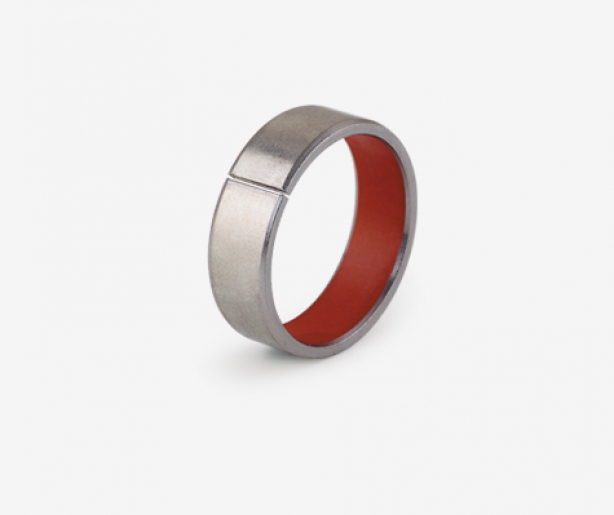

Stainless steel back -- spray PTFE coating
Feature
1.High corrosion resistance
2.High wear resistance
3.Especially suitable for occasions with strong acid, strong alkali, light load, medium and low speed，its wear resistance is obviously better than the monolithic PTFE bearings and graphite bearings.
Application
Sliding parts requiring corrosion and wear resistance in
1.Chemical acid-base flowmeters
2.Pumps
3.Valves
4.Marine industry.
Max load pressure: 100N/mm²
Friction Coef. μ: 0.03-0.18
Applicable temperature : -190C-280℃
Max allowable PV value (dry): 3.0N/mm²·m/s
Max sliding speed: 2.5m/s
Max allowable PV value (oil): 40N/mm²·m/s
